Features:
- Watermark approved.
- Brass and chrome finish.
- Tested and certified to AS 3688.

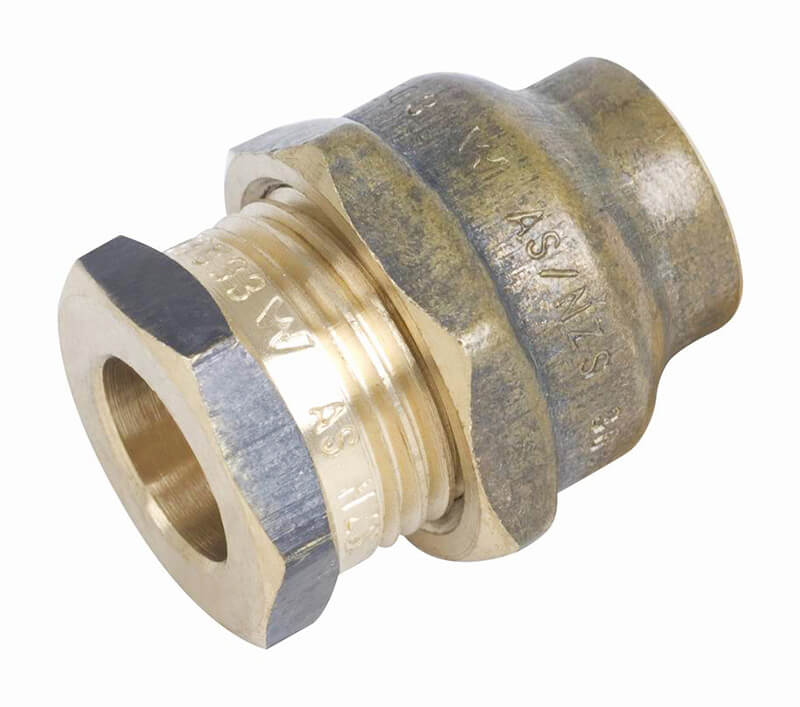

Brass Flare Compression Union Copper Pipe Fitting
Brass⁄chrome fitting, AS 3688 certified, Watermark approved. 1–95 °C, 1600kPa max. Durable & compliant for high-pressure, high-temp applications.
Price range: $4.14 through $12.37 Inc. GST
Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.
- Maximum working temperature 1°C to 95°C.
- Maximum pressure rating 1600kPa.
| Part | Material |
|---|---|
| Olive | DR Brass |
| Compression Nut | DR Brass |

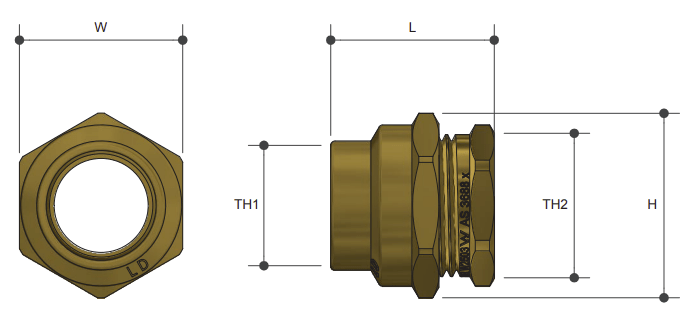

Drawings - Measurements
FLARED COMPRESSION UNION
C X C
| Size | L | H | W | TH1 | TH2 |
|---|---|---|---|---|---|
| 15C × 15C | 30 | 28 | 25 | 15C | 15C |
| 20C × 20C | 38 | 35 | 32 | 20C | 20C |
| 25C × 25C | 38 | 43 | 38 | 25C | 25C |
