Features:
- Watermark approved.
- Thread type: Male BSP.
- Brass and chrome finish.
- Tested and certified to AS 3688.

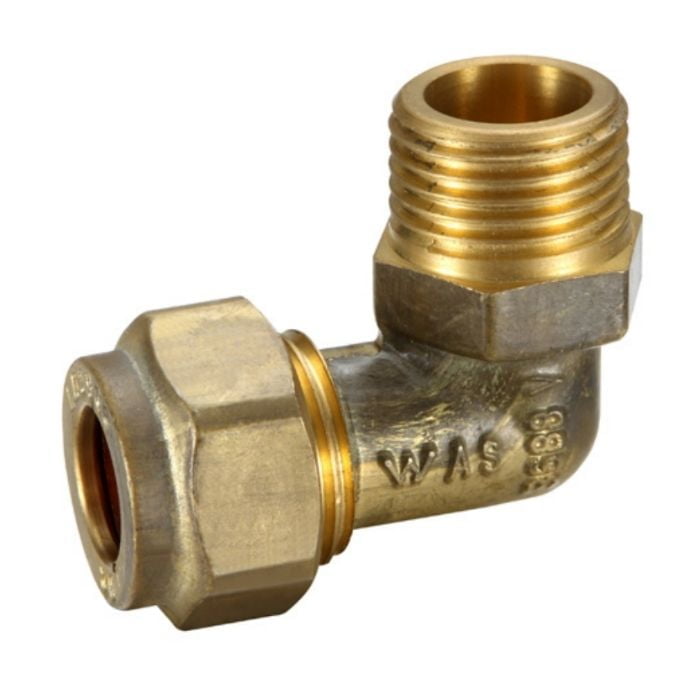

Brass Olive Compression Elbow Male BSP Thread x Copper Pipe Fitting
Watermark approved brass & chrome Male BSP fitting. AS 3688 certified. Max temp 95°C & pressure 1600kPa. Durable, compliant & corrosion-resistant.
Price range: $5.75 through $8.66 Inc. GST
Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.
Specifications:
- Maximum working temperature 1°C to 95°C.
- Maximum pressure rating 1600kPa.
| Part | Material |
|---|---|
| Elbow | DR Brass |
| Compression Nut | DR Brass |
| Olive | Copper |

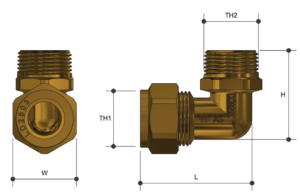

Drawings - Measurements
COPPER COMPRESSION
Elbow MI X C
| Size | L | H | W | TH1 | TH2 |
|---|---|---|---|---|---|
| 15 | 45 | 38 | 25 | 15C | R ½″ |
| 20 | 54 | 43 | 31 | 20C | R ¾″ |
