Features:
- Watermark approved.
- Thread type: Male BSP.
- Brass and chrome finish.
- Tested and certified to AS 3688.

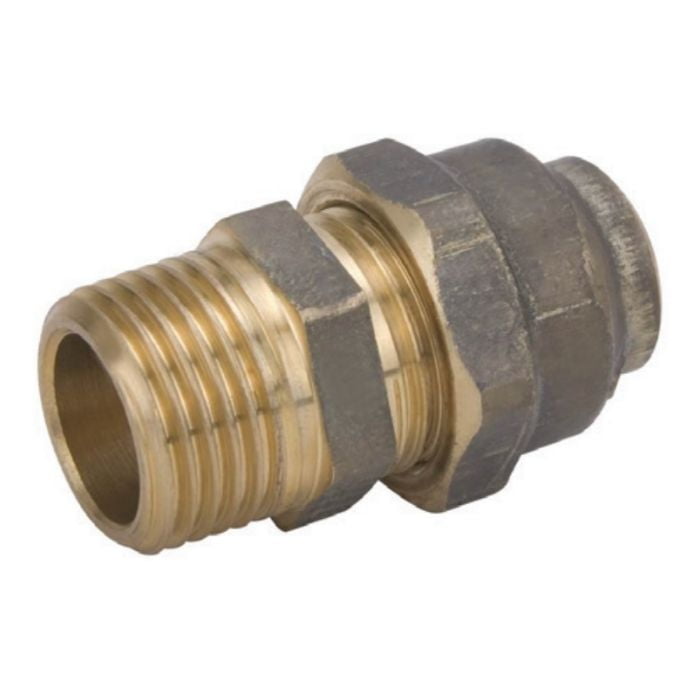

Brass Flare Compression Union Male BSP Thread x Copper Pipe Fitting
Watermark approved valve with Male BSP thread. Max temp 95°C, 1600kPa pressure. Brass & chrome finish. AS 3688 certified. Durable & reliable.
Price range: $3.97 through $10.36 Inc. GST
Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.
- Maximum working temperature 1°C to 95°C.
- Maximum pressure rating 1600kPa.
| Part | Material |
|---|---|
| Union | DR Brass |
| Nipple | DR Brass |

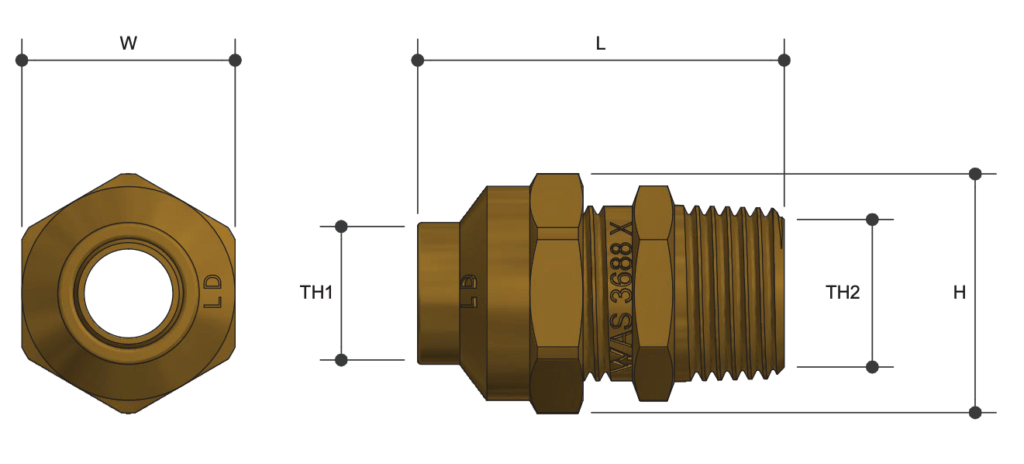

Drawings - Measurements
FLARED COMPRESSION
Union MI X C
| Size | L | H | W | TH1 | TH2 |
|---|---|---|---|---|---|
| 6 MI × 6C | 31 | 20 | 18 | 6C | R ¼″ |
| 10MI × 10C | 38 | 24 | 22 | 10C | R ⅜″ |
| 15MI × 15C | 43 | 28 | 25 | 15C | R ½″ |
| 20MI × 20C | 52 | 35 | 32 | 25C | R ¾″ |
| 25MI × 25C | 54 | 43 | 38 | 25C | R 1″ |
| 32MI × 32C | 68 | 47 | 47 | 32C | R 1¼″ |
| 40MI × 40C | 71 | 58 | 55 | 40C | R 1½″ |
| 50MI × 50C | 73 | 71 | 66 | 50C | R 2″ |
