Stainless Steel 316 Tri-clover Ferrule Tube Fitting

Tri Clover Ferrules offer hygienic, AS1528.3-compliant pipe joins. 316L SS, easy to clamp & seal. Polished & descaled for corrosion & fingerprint resistance.

Price range: $9.67 through $26.53 Inc. GST

- +
SKU: SSTCF Category: Tag: Brand:

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

Tri Clover Ferrules are a very popular Hygienic Fitting due to providing a smooth, non-contaminating internal pipework joint. They are part of a Union that consists of two ferrules which are compressed together using a clamp and a gasket between the two ferrules which provides a tight seal. Tri Clamp Ferrules are manufactured from Grade 316L stainless steel to standard AS1528.3 and are easy to remove by hand using the single hinge clamp wing nut.

  • Made from Grade 316 stainless steel for excellent corrosion resistance.
  • Made to AS1528 which conforms to Australian food production standards.
  • Fully Hygienic, Polished and Descaled for that distinctive look that hides fingerprints.

Reviews

There are no reviews yet.

Be the first to review “Stainless Steel 316 Tri-clover Ferrule Tube Fitting”

Your email address will not be published. Required fields are marked *

Drawings - Measurements

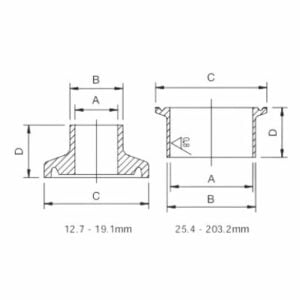

Stainless Steel 316 Tube Fitting Tri-clover Ferrule - Drawing
Size (mm) A B C D
20 16 20 25 28.6
25 22 25 50 28.6
40 35 40 50 28.6
50 48 50 64 28.6
60 60 60 80 28.6
80 72 80 90 28.6
100 98 100 120 28.6
