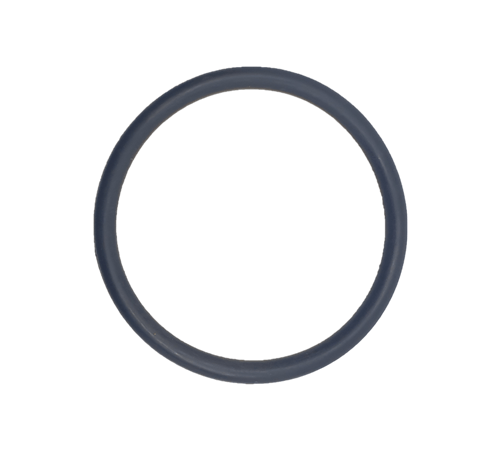

Rubber BSM O-ring Seal Tube Fitting

BSM EPDM seals for hygienic unions in dairy, food & pharma. AS1528 compliant, high-grade material. Ideal for sanitary pipework with BSM fittings.

Price range: $0.97 through $2.34 Inc. GST

- +
SKU: BSM-SEAL Category: Brand:

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

BSM (British Standard Milk) EPDM seals were initially designed for tube installation in the Australian dairy industry. They are now more commonly used in food and beverage and pharmaceutical industries where strict hygienic conditions are required which BSM fittings provide. BSM seals can be purchased with BSM Hex Nuts, BSM Liners, BSM Males and BSM Blanks to create a BSM union.

  • Made from high grade EPDM
  • Made to AS1528 which conforms to Australian food production standards

Reviews

There are no reviews yet.

Be the first to review “Rubber BSM O-ring Seal Tube Fitting”

Your email address will not be published. Required fields are marked *

Drawings - Measurements

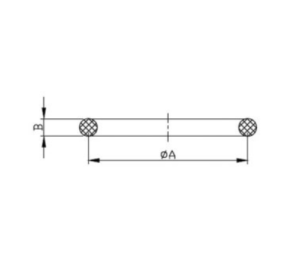

Rubber Tube Fitting BSM O-ring Seal - Drawing
Size A B
25mm (1″) 33.3 6.5
40mm (1½″) 46 6.5
50mm (2″) 58.7 6.5
80mm (3″) 84.1 6.5
100mm (4″) 109.5 6.5
150mm (6″) 160.3 6.5
