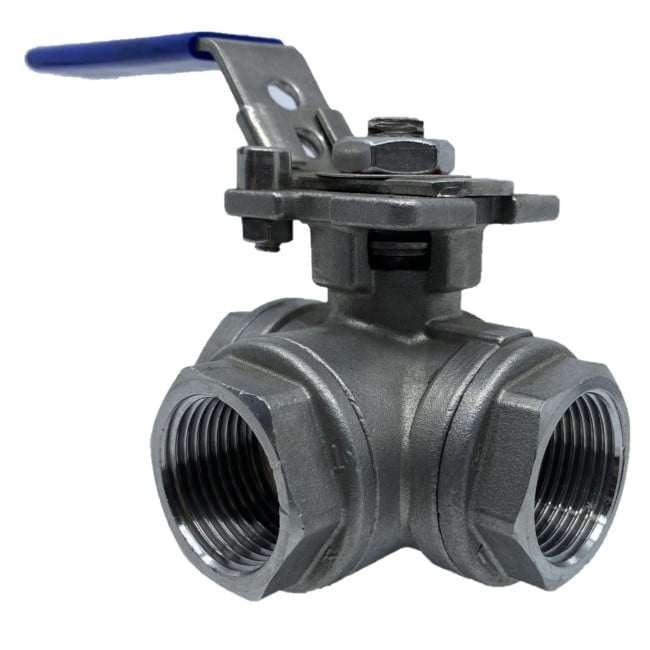

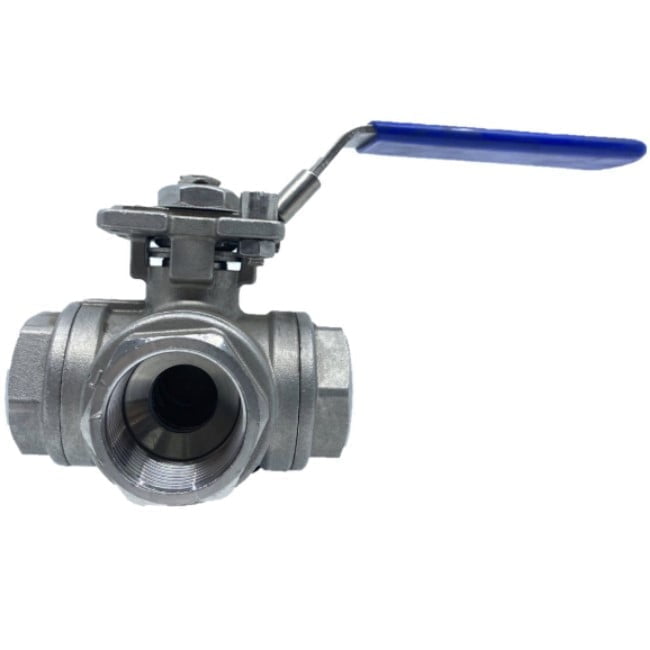

Stainless Steel 316 3-Way Ball Valve L-Port Lever Operated Female BSP Thread – General Purpose
Precision Flow Control. Rugged Build. Multipoint Distribution.
The 316 Stainless Steel 3-Way Ball Valve with L-Port configuration is a high-quality manual valve designed to redirect or split flow from a single inlet to one of two outlets. This lever-operated, reduced bore valve is ideal for managing directional flow in water pipe networks and other fluid systems across industrial, agricultural, or commercial environments.
With a rotatable ball inside the valve body, the L-Port design diverts flow between the centre port and either of the side ports. It’s perfect for applications requiring controlled switching between two lines or alternating destinations.
Key Features:
- Valve Type: 3-Way Ball Valve (L-Port).
- Operation: Lever Operated – Lockable.
- Thread Type: Female BSP x 3.
- Flow Control: Diverts or splits flow from one inlet to either left or right outlet.
- Full Port Design: Ensures maximum flow with minimal pressure drop.
- Pressure Rating: 6895 kPa (1000 PSI).
- Temperature Range: Up to 180°C.
- Applications: Suitable for air, water, hot/cold corrosive fluids in harsh environments.
- Certifications: Manufactured and approved to ISO 9002 standards.
Material Specifications:
- Body & Ball: 316 Stainless Steel.
- Seals & Seat: PTFE.
- Body Gasket: PTFE.
- Cap: 316 Stainless Steel.
- Stem: 316 Stainless Steel.
- Thrust Washer: PTFE.
- Stem Packing: PTFE.
- Gland Nut, Spring Washer, Nut, Lockplate: 316 Stainless Steel.
- Handle Cover: Plastic.
This 316 Stainless Steel 3-Way Ball Valve with L-Port design is engineered for versatile, secure, and long-lasting fluid control. Whether splitting flow between two outputs or isolating lines for maintenance, this valve ensures precision control in the most demanding conditions.
