Brass T-handle Ball Valve Female BSP Thread Full Bore Tested
Brass T-handle Ball Valve Female BSP Thread Full Bore Tested

Brass T-handle Ball Valve Female x Female BSP Thread Full Bore Tested Dual Approved

Built for performance and reliability, our Brass T-handle Ball Valve features a full bore design with BSP Female x Female threads. Dual approved and AGA certified (#5301), it includes a conical PTFE stem seal, blow-out proof stem, and is pressure tested during production. Designed to be used fully open or closed, it’s ideal for gas and water systems. Available in sizes 15mm (½″) to 25mm (1″).

Price range: $12.40 through $30.53 Inc. GST

- +
SKU: BVTT Category: Tag:

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

Datasheet
  • Full bore
  • Australian Gas Association approval #5301
  • Conical PTFE stem sealing system
  • Blow-out proof stem
  • Must be operated in a fully open or closed position
  • All valves pressure tested during production
  • Size range: 15mm (½″) to 25mm (1″)

Reviews

There are no reviews yet.

Be the first to review “Brass T-handle Ball Valve Female x Female BSP Thread Full Bore Tested Dual Approved”

Your email address will not be published. Required fields are marked *

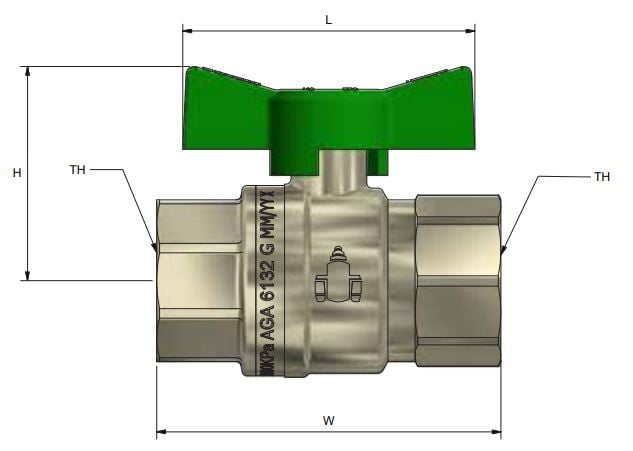

Brass T-handle Ball Valve Female BSP Thread Full Bore Tested - Drawing
SIZE L H W TH
15mm (½") 56 37 58 Rp ½"
20mm (¾") 56 41 66 Rp ¾"
25mm (1") 56 45 74 Rp 1"

Make Up

PART MATERIAL
Body DR Brass
Seal PTFE
Ball DR Brass
Bonnet DR Brass
Sprindle DR Brass
O Ring FKM
Handle Aluminium
Lock Nut Stainless Steel

Technical Features

  • Temperature range: -20°C to 100°C
  • Maximum operating pressure at nominal temperatures: 2100 kPa
  • According to AS 5601 Table 4.1, the operating pressure of consumer gas piping systems containing copper is 200 kPa
