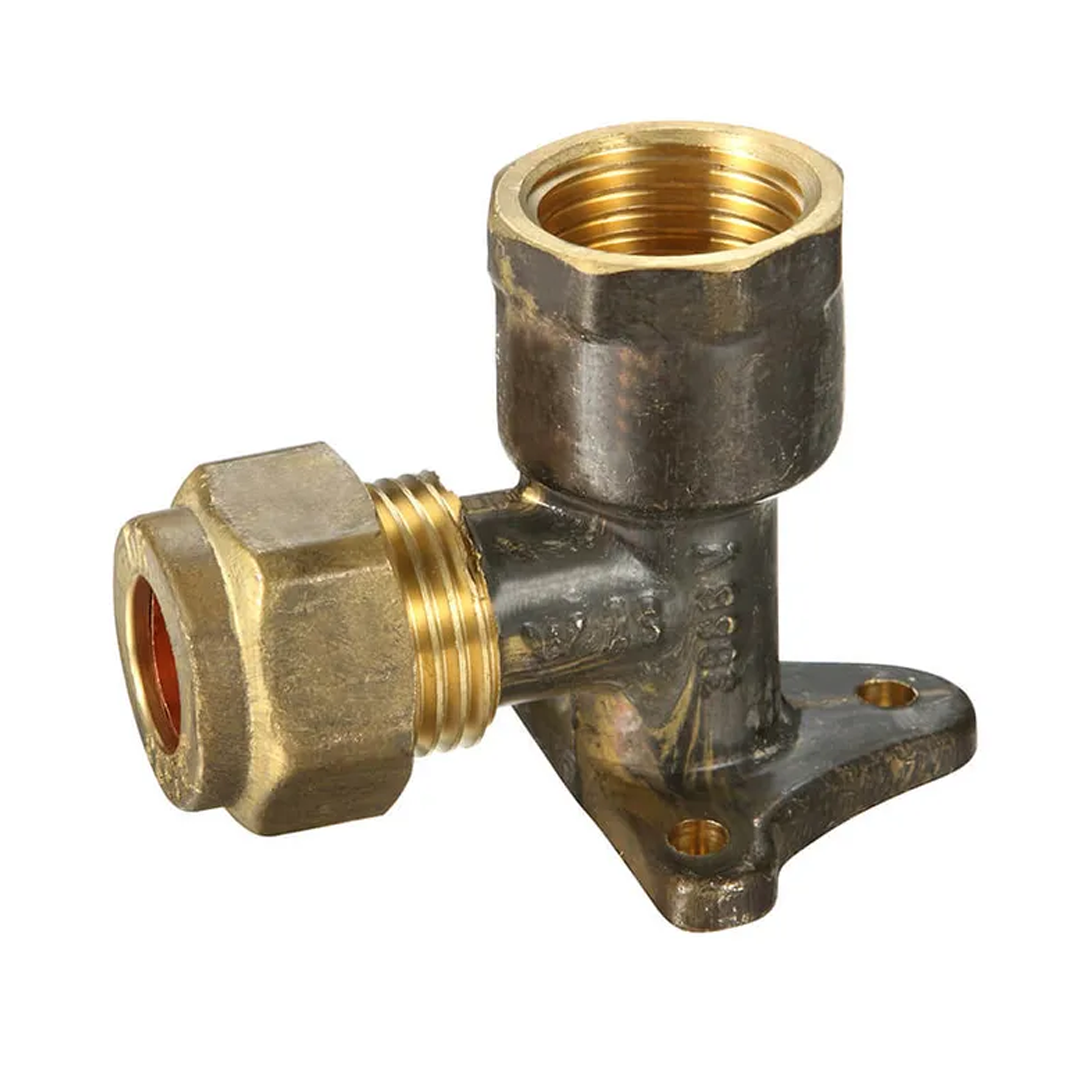

Brass Olive Compression Wall Plate Elbow Female BSP x Copper

Brass Olive Compression Wall Plate Elbow Female BSP Thread x Copper Pipe Fitting

Chrome & brass BSP fitting, 1600kPa, 1°C–95°C, Watermark approved & AS 3688 certified. Reliable, high-temp pressure-rated performance.

$8.46 Inc. GST

Size

15mm x 15mm (½″ x ½″)

Clear

- +

SKU: CCFEMC-1 Category: Brass & Copper Pipe Fittings Tag: Brass

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

Description
Reviews (0)

Durable, Certified Connection for Copper Plumbing Systems

The Brass Olive Compression Wall Plate Elbow is a high-quality fitting designed for reliable water connection between copper pipes and BSP threaded outlets. Ideal for residential and commercial plumbing installations, this elbow fitting features a robust brass body and compression connection that ensures a watertight seal without the need for soldering or welding.

With a durable brass and optional chrome finish, it combines both performance and corrosion resistance. This product is WaterMark approved and tested to Australian Standard AS 3688, ensuring safety, durability, and compliance for use in potable water systems.

Key Features

Temperature Range: Operates between 1°C to 95°C.
Maximum Pressure: Rated up to 1600 kPa.
Certified Quality: WaterMark approved and tested to AS 3688.
Thread Type: Female BSP for secure and standardized connections.
Premium Finish: Brass body with chrome plating for enhanced durability and corrosion resistance.

Application: Ideal for use in hot and cold potable water systems using copper piping. Suitable for wall-mounted plumbing outlets and fixtures.
