Brass Lever Operated Ball Valve Female x Female BSP Thread Full Bore Tested Dual Approved Gas & Water

DZR brass full-bore ball valve—dual approved for gas & water, lever handle, Watermark certified to Australian plumbing standards.

Price range: $11.99 through $99.28 Inc. GST

- +
SKU: BVLT Category:

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

DatasheetSize Guide
  • High Quality Tested Brass Ball Valve Dual Approved for Gas & Water.
  • DZR Brass Ball Valve F&F with Lever Handle – Full Bore.
  • Has been tested and given a watermarked certificate that complies with the plumbing code of Australia and is approved for Gas & Water.

Reviews

There are no reviews yet.

Be the first to review “Brass Lever Operated Ball Valve Female x Female BSP Thread Full Bore Tested Dual Approved Gas & Water”

Your email address will not be published. Required fields are marked *

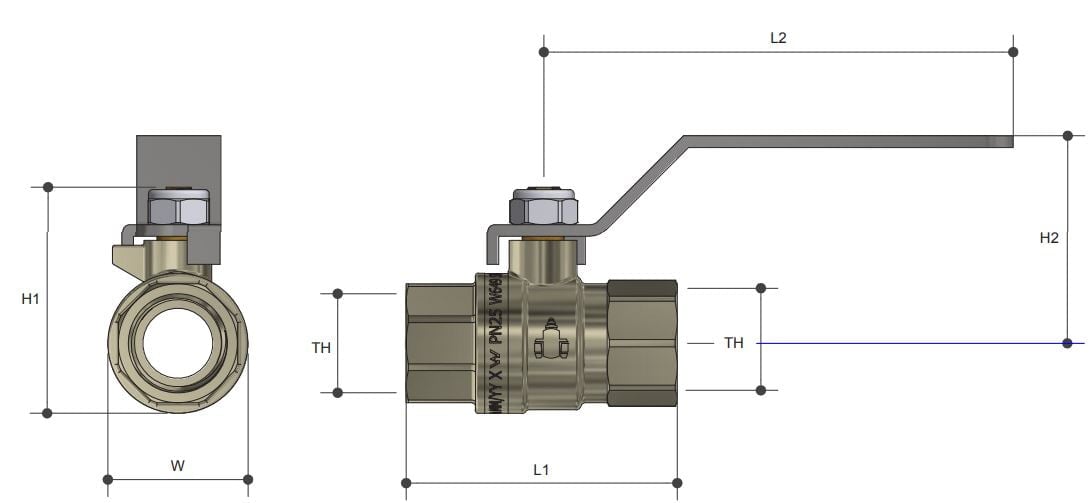

Brass Lever Operated Ball Valve Female BSP Full Bore Tested - Drawing
Size L1 L2 H1 H2 W TH
15 mm (½″) 58 101 48 44 30 Rp ½″
20 mm (¾″) 66 101 48 48 37 Rp ¾″
25 mm (1″) 81 101 55 52 46 Rp 1″
32 mm (1-¼″) 91 140 80 71 58 Rp 1-¼″
40 mm (1-½″) 102 140 92 77 69 Rp 1-½″
50 mm (2″) 121 140 108 85 84 Rp 2″

Make Up

Part Material
Body Brass
Seal PTFE
Ball Brass
Bonnet Brass
Spindle Brass
O Ring FKM
Handle Stainless Steel
Lock Nut Stainless Steel
