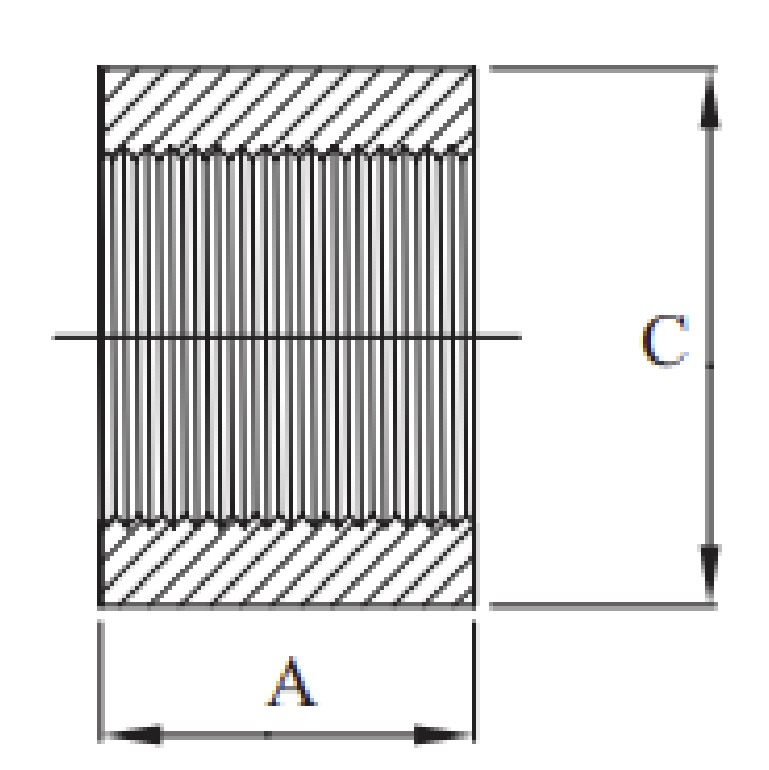

A fully threaded female BSP pipe fitting used to connect two equal sized male-threaded pipes in line with each other. Suitable for high or low-pressure assemblies in air, oil, gas, and steam applications. Made from carbon steel with a black oxide coating and protected with a coating of light oil for corrosion protection. BSP threads are manufactured to comply with AS 1722 & ISO 7-1 requirements.
- A coupling (or coupler) (used in piping or plumbing) is a very short length of pipe or tube, with a socket at one or both ends that allows two pipes or tubes to be joined, threaded, welded (steel), brazed or soldered (copper, brass etc.) together.
- Threads for the screwed ends of fittings comply to the appropriate requirements of AS 1722 Part 1: Sealing pipe threads and also ISO 7-1.
- Female Ends: Normally supplied with parallel thread.
- Male Ends: Normally supplied with taper threads.
- Black Steel: These fittings are generally degreased and protected with a coating of light oil.
- BS EN 10241 “Steel Threaded Pipe Fittings, Screwed BSP Thread”.
- Australian Standard 1650 “Galvanised Coatings on Ferrous Articles”.
