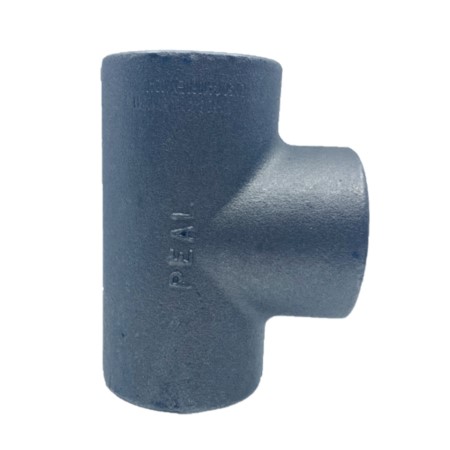

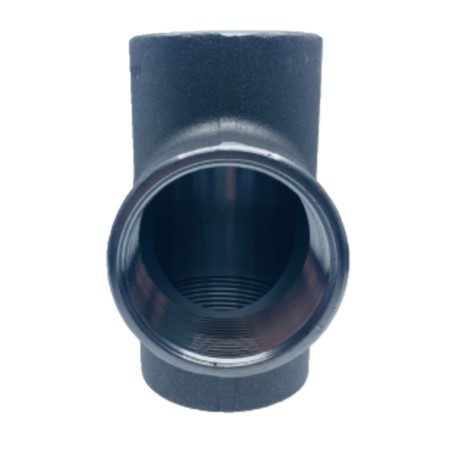

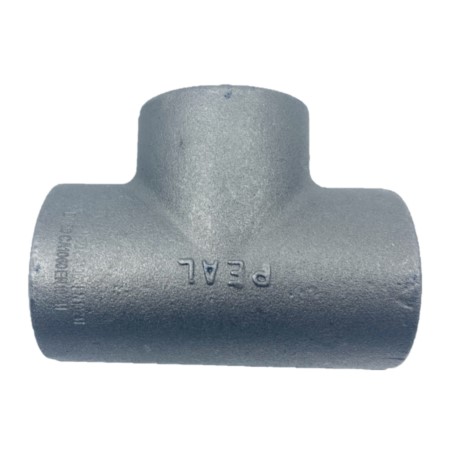

A three-way pipe fitting used to connect three threaded pipes and to create a branch off from a straight pipeline. Suitable for high or low-pressure assemblies in air, oil, gas, and steam applications. Made from carbon steel with a black oxide coating and protected with a coating of light oil for corrosion protection. BSP threads are manufactured to comply with AS 1722 & ISO 7-1 requirements.” Remove “Australian Standard 1074 “Steel Tubes and Tubulars Threaded or suitable for Threading with Pipe Threads of Whitworth Form
- Pipe Tee is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the mainline.
- It is a short piece of pipe with a lateral outlet.
- Pipe Tee is used to connect pipelines with a pipe at a right angle with the line.
- Pipe Tees are widely used as pipe fittings.
- Threads for the screwed ends of fittings comply to the appropriate requirements of AS 1722 Part 1: Sealing pipe threads and also ISO 7-1.
- Female Ends: Normally supplied with parallel thread.
- Male Ends: Normally supplied with taper threads.
- Black Steel: These fittings are generally degreased and protected with a coating of light oil.
- BS EN 10241 “Steel Threaded Pipe Fittings, Screwed BSP Thread”.
- Australian Standard 1074 “Steel Tubes and Tubulars Threaded or suitable for Threading with Pipe Threads of Whitworth Form”.
- Australian Standard 1650 “Galvanised Coatings on Ferrous Articles”.
