Exceptionally flexible, clear suction/discharge food grade hose suitable for the food and beverage processing industries including wineries, milk collection and drinking water. The clear rigid helix makes the hose completely transparent. It is UV light resistant and conforms to AS2070 1999 and EU2022-72-EC. The Reinforcing steel wire allows the hose to be used for for suction and low to moderate pressure applications.

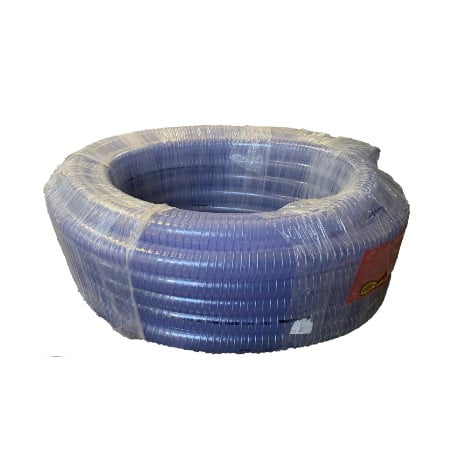

Barfell PVC Helisteel Clear Wire Suction Hose
Flexible clear food grade suction/discharge hose, UV resistant, AS2070 & EU compliant. Transparent with steel wire for suction & moderate pressure use.
Price range: $79.75 through $721.60 Inc. GST
Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.
Features:
- Colour: Clear with White Rigid Spiral.
- Size Range: 40mm (11/2″) & 50mm (2″).
- Full coils are 30m long.
- Each size can be cut into 5m lengths.
- Certified Phthalate Free.
- Extra thick wall construction for tough applications.
- Reinforcing steel wire for suction and pressure applications.
- Temperature range -6°C to +65°C* (maximum).
- Wall: Clear food grade PVC.
- Reinforcing: Steel Wire Helix.
- Full vacuum.
- Excellent bending/flexing.
- Extremely flexible.
- Outstanding abrasion resistance (due to inclusion of urethane rubber).
- Australian Made.
| I.D (Inside Diameter) | O.D (Outside Diameter) | Max. Vacuum (mm/Hg) | Max. Working Pressure (PSI) | Min. Bend Radius (mm) | Weight KG/M |
|---|---|---|---|---|---|
| 40mm (1½") | 47mm | 625 | 57 | 63 | 0.80 |
| 50mm (2") | 60mm | 588 | 57 | 82 | 1.24 |
