This hose is a medium-duty chemical suction/discharge hose. It is extremely flexible and a lighter weight product for the less demanding applications.

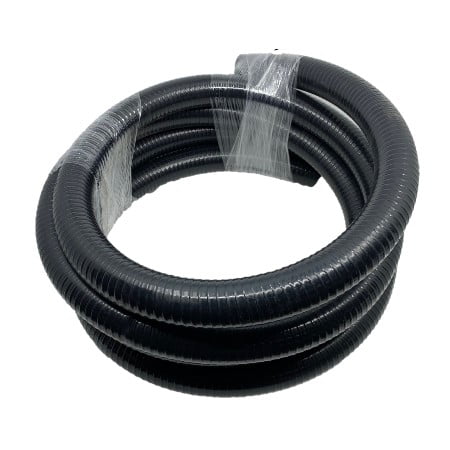

Barfell PVC Chemical Suction Hose Black
Extremely flexible and lightweight, this Australian-made medium-duty chemical hose is ideal for less demanding suction and discharge tasks. Made from durable PVC with a rigid spiral, it offers excellent chemical and abrasion resistance, a smooth bore for efficient flow, and great weather durability. Available in 25mm–50mm sizes, 20m coils or 5m cuts. Perfect for waste collection, grease pits, sewage, fuels, lubricants, and chemicals.
Price range: $106.00 through $694.20 Inc. GST
Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.
Features
- Colour: Black
- PVC Material with a rigid PVC spiral
- Size Range: 25mm (1″) – 50mm (2″)
- Comes in 20m coils
- Each size can be cut into 5m lengths
- Mirror smooth bore for increased pumping and pumping efficiency
- Excellent chemical resistance
- Good weathering properties
- Temperature Range: -5°C to +60°C
- Extremely flexible
- Excellent abrasion resistance
- Australian Made
Applications
- Collection of waste on environmental waste trucks
- Pumping the contents of grease pits
- Sewage collection
- Pumping of fuels, lubricants and most chemicals
| I.D (Inside Diameter) | O.D (Outside Diameter) | Vacuum Rating kPa/20°C | Working Pressure at 20°C (MPa) | Working Pressure at 20°C (PSI) | Weight KG/M | Min Bend Radius (mm) |
|---|---|---|---|---|---|---|
| 25.2mm (1") | 32.0mm | -90.0 | 0.65 | 95 | 0.41 | 65 |
| 31.8mm (1¼") | 39.0mm | -90.0 | 0.65 | 95 | 0.54 | 100 |
| 38.4mm (1½") | 46.2mm | -90.0 | 0.55 | 80 | 0.70 | 150 |
| 50.8mm (2") | 60.0mm | -90.0 | 0.45 | 65 | 1.07 | 190 |
