Sale!

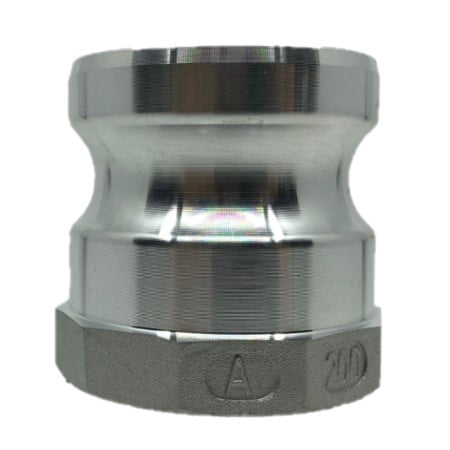

Aluminium Camlock Fitting Type A Male Adaptor x Female BSP Thread

Aluminium Camlock Type A: male camlock x female BSP. Lightweight, corrosion-resistant, non-toxic. Tool-free, durable, and ideal for quick liquid transfers.

Price range: $1.78 through $22.91 Inc. GST

- +
SKU: ALA Category: Tag:

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

Aluminium Camlock – Type A – Male Camlock x Female BSP Thread

A Quick Connect / Disconnect Fitting

The benefit of an aluminium camlock is that aluminium is light weight and corrosion resistant. It is also odourless and water-tight, which makes it non toxic.

Camlock fittings are used to connect hose fittings and/or pipe fittings together in a numerous number of industries – this enables liquids to be transferred from one place to another. No tools are required to connect camlock fittings which makes them super easy to use, time saving and cost efficient. Camlock fittings are an extremely versatile and durable product and are well suited to situations where frequent changes occur.

Reviews

There are no reviews yet.

Be the first to review “Aluminium Camlock Fitting Type A Male Adaptor x Female BSP Thread”

Your email address will not be published. Required fields are marked *

Features:

  • Male Camlock x Female BSP thread of the same size.
  • Used with corresponding coupler: Type B (male thread end), Type C (hose barb), Type D (female thread end) or Type DC (dust cap).
  • Used in irrigation, pumping, hose distribution, bulk tanker, water carrier and general industries.
  • Type: A.
  • Thread: BSP.
  • Material: Aluminium.
  • Sizes range from: 20mm (3/4″) - 150mm (6″).

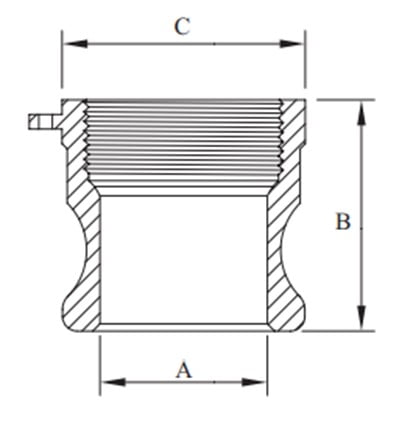

Aluminium Camlock Fitting Type A Male Adaptor x Female BSP - Drawing
SIZE A B C ALUMINIUM KG/PC
¾" 21 41 32 0.04
1" 24 52 40 0.06
1¼" 28.5 54 48 0.09
1½" 36 57 56 0.12
2" 45 62 67 0.14
2½" 56.5 71 83 0.21
3" 73 71 96 0.26
4" 98 82 127 0.58
6" 150 79 183 0.90
