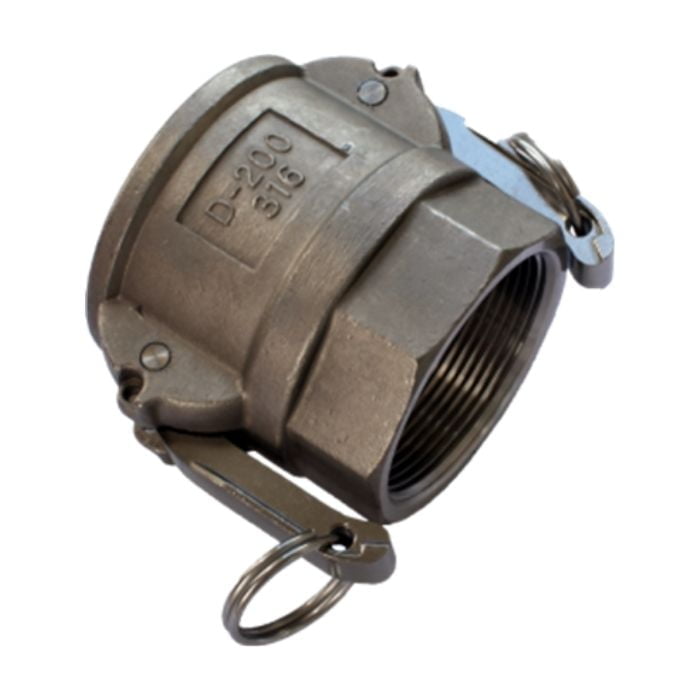

Stainless Steel Camlock Fitting Type D Female Coupling x Female BSP Thread

Stainless Steel Camlock Type D: female camlock x female BSP. Tough, hygienic, and temperature-resistant—ideal for food, pharmaceutical, and corrosive liquid transfer.

Price range: $13.85 through $238.50 Inc. GST

- +
SKU: CLSSD Category: Tag: Brand:

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

Stainless Steel Camlock – Type D – Female Camlock x Female BSP Thread

A Quick Connect / Disconnect Fitting

The benefit of a stainless steel camlock is that stainless steel is durable, robust and has exceptional temperature resistance. The cleanliness of the inner wall of the couplings helps avoid impurities, condensation and bacteria growing. It is commonly used for the transfer of alkali and corrosive substances and also one of the 1st choices in food, beverage and pharmaceutical processing.

Camlock fittings are used to connect hose fittings and/or pipe fittings together in a numerous number of industries – this enables liquids to be transferred from one place to another. No tools are required to connect camlock fittings which makes them super easy to use, time saving and cost efficient. Camlock fittings are an extremely versatile and durable product and are well suited to situations where frequent changes occur.

Reviews

There are no reviews yet.

Be the first to review “Stainless Steel Camlock Fitting Type D Female Coupling x Female BSP Thread”

Your email address will not be published. Required fields are marked *

Features:

  • Female Camlock x Female BSP thread of the same size.
  • Used with corresponding adaptors, Type A (female thread end), Type E (hose barb), Type F (male thread end) or Type DP (dust plug).
  • Type: D.
  • Thread: BSP.
  • Material: Stainless Steel.
  • Sizes range from: 20mm (3/4″) - 150mm (6″).

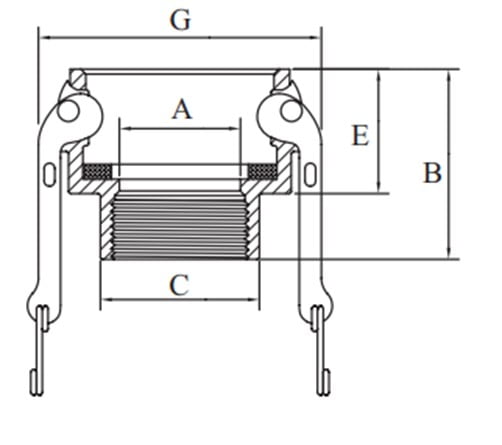

Stainless Steel Camlock Fitting Type D Female Coupling x Female BSP Thread - Drawing
SIZE A B C E G STAINLESS STEEL KG/PC
¾" 19 53 32 32 53 0.18
1" 26 60 40 40 60 0.25
1¼" 30 71 48 48 78 0.41
1½" 39 73 56 49 85 0.51
2" 50 76 67 54 96 0.62
2½" 58 84 83 59 110 0.82
3" 72 89 96 60 127 1.21
4" 98 94 127 62 156 1.73
6" 140 99 175 62 240 3.44
