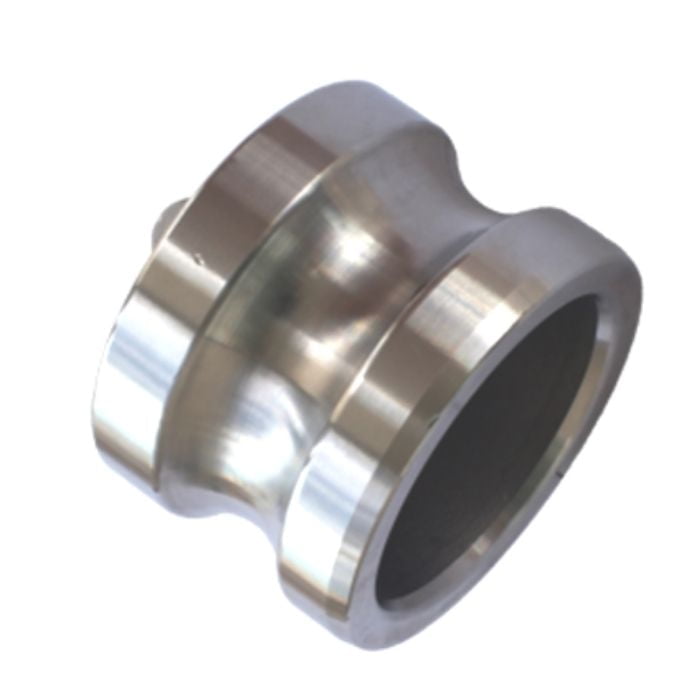

Stainless Steel Camlock Fitting Type DP Dust Plug

Stainless Steel Dust Plug (Type DP) seals Camlock ends. Blocks dust, insects & debris. Fits B, C, D couplers. Durable, clean & corrosion resistant.

Price range: $4.26 through $150.07 Inc. GST

- +
SKU: CLSSDP Category: Tag: Brand:

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

Stainless Steel Camlock – Type DP – Male Camlock Dust Plug

The benefit of a stainless steel camlock is that stainless steel is durable, robust and has exceptional temperature resistance. The cleanliness of the inner wall of the couplings helps avoid impurities, condensation and bacteria growing. It is commonly used for the transfer of acid, alkali and corrosive substances and also one of the 1st choices in food, beverage and pharmaceutical processing.

Camlock fittings are used to connect hose fittings and/or pipe fittings together in a numerous number of industries – this enables liquids to be transferred from one place to another. No tools are required to connect camlock fittings which makes them super easy to use, time saving and cost efficient. Camlock fittings are an extremely versatile and durable product and are well suited to situations where frequent changes occur.

  • Male Camlock Dust Plug.
  • Used to seal the end of a coupler.
  • Used with Type B, C, D couplers.
  • Prevents dust, dirt, insects and small rodents from entering the sealed area.
  • Type: DP.
  • Material: Stainless Steel.
  • Sizes range from: 20mm (3/4″) – 150mm (6″).

Reviews

There are no reviews yet.

Be the first to review “Stainless Steel Camlock Fitting Type DP Dust Plug”

Your email address will not be published. Required fields are marked *

Drawings - Measurements

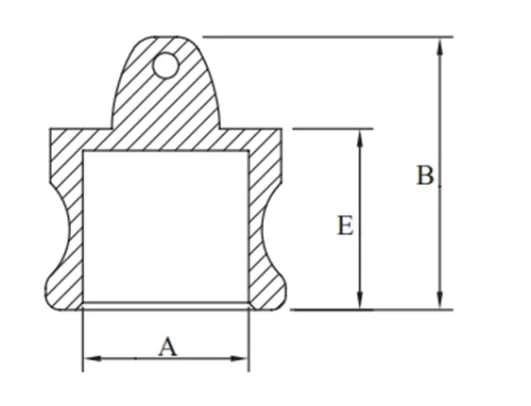

CLSSDP - Drawing
SIZE A B E STAINLESS STEEL KG⁄PC
¾″ 21 38 24 0.07
1″ 24 50 30 0.12
1¼″ 29 55 38 0.22
1½″ 36 59 41 0.29
2″ 45 64 43 0.42
2½″ 57 68 45 0.56
3″ 73 70 48 0.77
4″ 98 76 52 1.21
6″ 155 85 62 2.9
