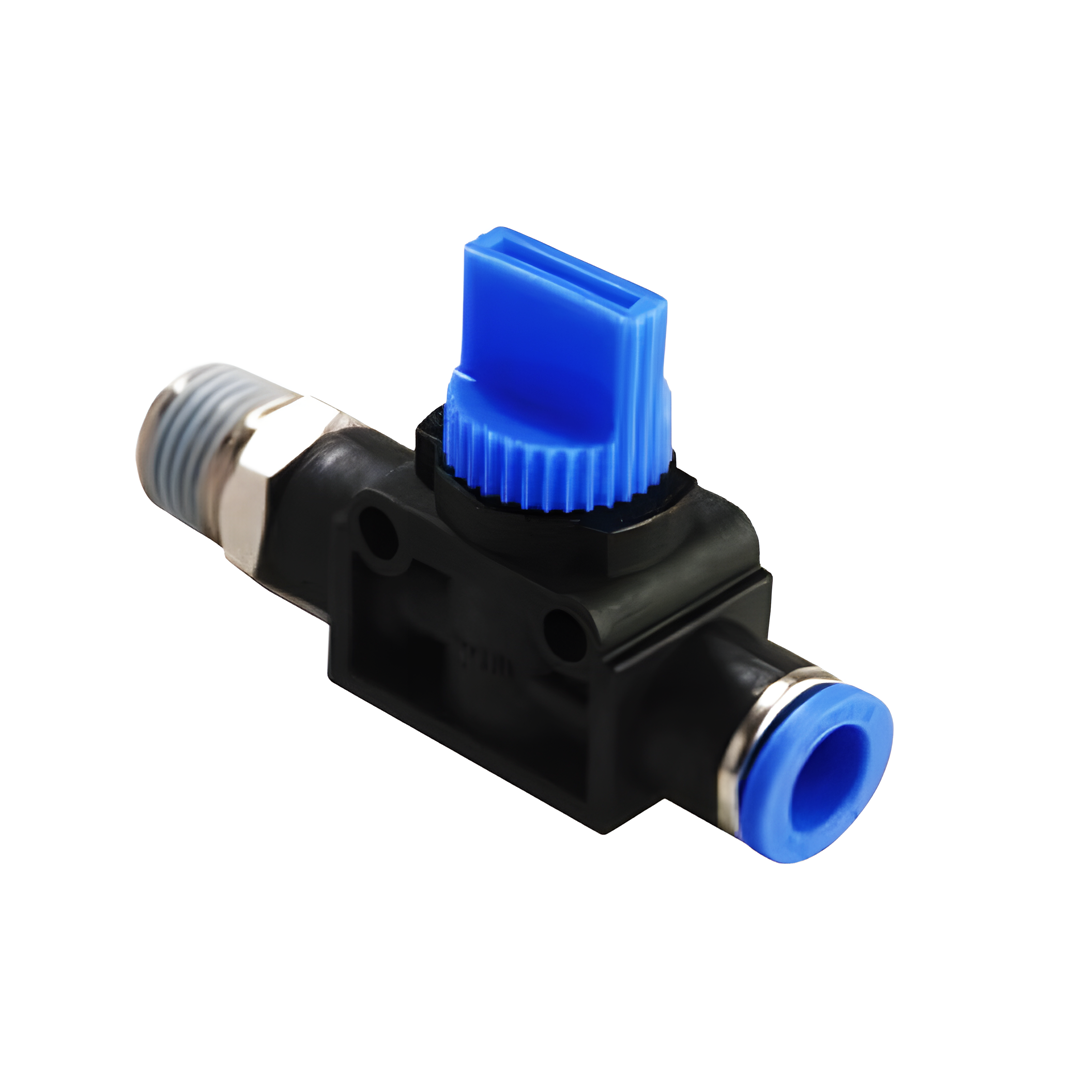

Engineered for performance and built to last, this Nylon Shut-Off Valve features a Male BSP Thread to Metric Tube Push-In design, ideal for managing air flow in pneumatic systems with precision and safety.
Crafted from nickel-plated brass, UV-resistant composite plastic, and nitrile O-rings, this fitting is designed to endure tough environments and maintain a secure, leak-free connection—even under pressure. With a pre-taped PTFE thread and three-way shut-off function, it not only controls incoming air but also vents residual air from the output side—enhancing safety during system maintenance.
Key Features:
- Tool-Free Push-In Connection: Simple push-to-connect design—no clamps, adhesives, or soldering required.
- Durable Build: Corrosion-resistant nickel-plated brass body and UV black plastic for longevity in industrial or residential settings.
- Safe Maintenance: Three-way control valve vents residual pressure for safe disassembly or repair.
- Compact and Versatile: Ideal for confined spaces thanks to its six-angle wrench design and low-profile construction.
Technical Specifications:
- Size Range: 6mm to 12mm (Outer Diameter Tubes).
- Thread Type: BSPT (Tapered British Standard Pipe Thread).
-
Flow Direction Options:
- Tube Out: AIR → BSP → TUBE → OUT.
- Tube In: AIR → TUBE → BSP → OUT.
- Max Pressure: 150 PSI.
- Max Temperature: 60°C.
- Applications: Pneumatic air systems only.
- Tube Compatibility: Metric polyurethane and nylon tubing.
-
Materials:
- Nickel-Plated Brass.
- UV Black Composite Plastic.
- Nitrile O-Ring Seals.
- Pre-taped PTFE Thread.
Ideal for:
- Industrial control panels.
- Pneumatic valve systems.
- Residential or light commercial air lines.
Whether you’re retrofitting an existing setup or designing a new pneumatic system, this Nylon Shut-Off Valve offers the reliability, safety, and ease of use professionals demand.
