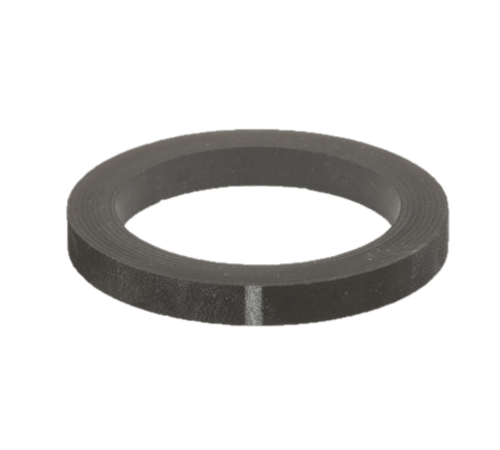

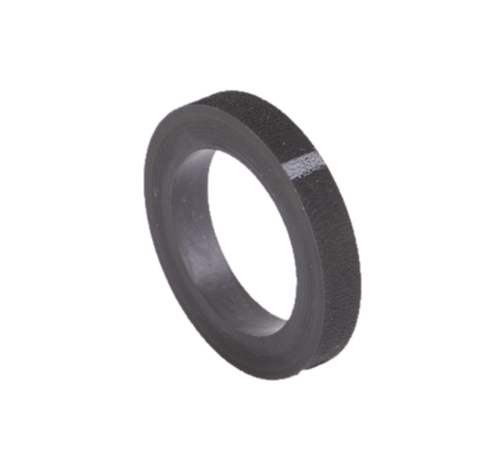

Banjo Rubber EPDM Manifold Gasket
Banjo Rubber EPDM Manifold Gasket

Banjo Rubber EPDM Manifold Gasket

EPDM rubber manifold gaskets for 100–300 Series flanges. Rated 125–150 PSI @ 21°C. Quick assembly, easy on/off connections, and secure positive seals.

Price range: $2.83 through $3.53 Inc. GST

- +
SKU: MG Category: Brand:

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

Banjo Rubber EPDM Manifold Gasket

Reliable Sealing. Fast Assembly. Engineered for Manifold Systems.

The Banjo Rubber EPDM Manifold Gasket is a high-quality sealing solution designed for use with Banjo manifold systems. Crafted from durable EPDM rubber, it delivers positive sealing, chemical resistance, and ease of installation, making it ideal for agricultural, chemical, and industrial fluid transfer applications.

Key Features:

  • Material: EPDM Rubber – Excellent resistance to water, weathering, and mild chemicals.
  • Compatibility: Fits a range of Banjo manifold flanges including:

    • 100 Series.
    • 200 Series (Standard Port).
    • 220 Series (Full Port).
    • 300 Series.
  • Pressure Ratings:

    • 100, 200, 220 Series – 150 PSI @ 21°C (70°F).
    • 300 Series – 125 PSI @ 21°C (70°F).
  • Quick Installation: Easy on/off design for fast gasket changes.
  • Secure Fit: Provides a reliable, leak-free seal between manifold flanges.

Whether you’re assembling or maintaining a Banjo manifold system, the Banjo Rubber EPDM Gasket ensures tight sealing, reduced downtime, and optimal fluid flow across a range of applications.

Reviews

There are no reviews yet.

Be the first to review “Banjo Rubber EPDM Manifold Gasket”

Your email address will not be published. Required fields are marked *

  • Available Flange Sizes: 100 Series, 200 Series (Standard Port), 220 Series (Full Port) & 300 Series
  • 100 Series to 220 Series Manifold fittings are pressure rated to 150 PSI at 21°C (70°F)
  • 300 Series Manifold fittings are pressure rated to 125 PSI at 21°C (70°F)
  • Easy on/off connections
  • Positive seals
  • Quick & easy assembly
  • Material: Rubber
  • Style: EPDM

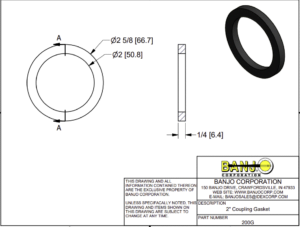

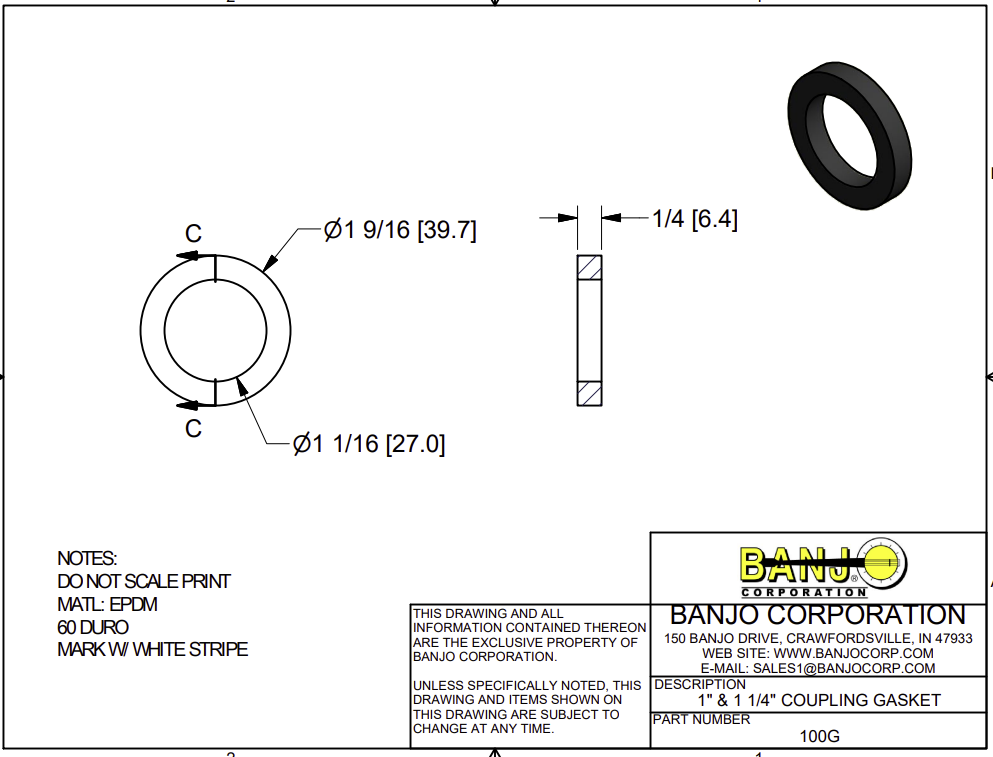

Drawings - M100G (100 Series)

Banjo Rubber EPDM Manifold Gasket - Drawing

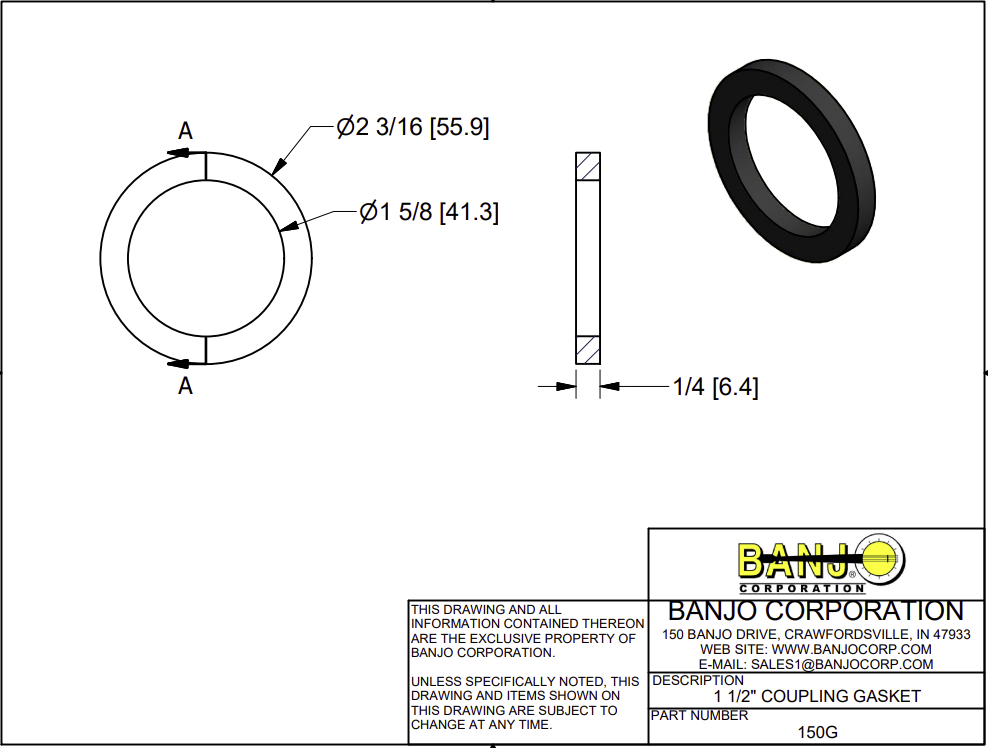

Drawings - 150G (200 Series)

Banjo Rubber EPDM Manifold Gasket - Drawing

Drawings - 200G (220 Series)

Banjo Rubber EPDM Manifold Gasket - Drawing

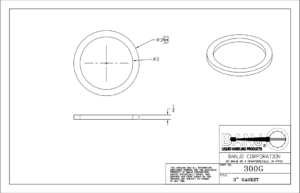

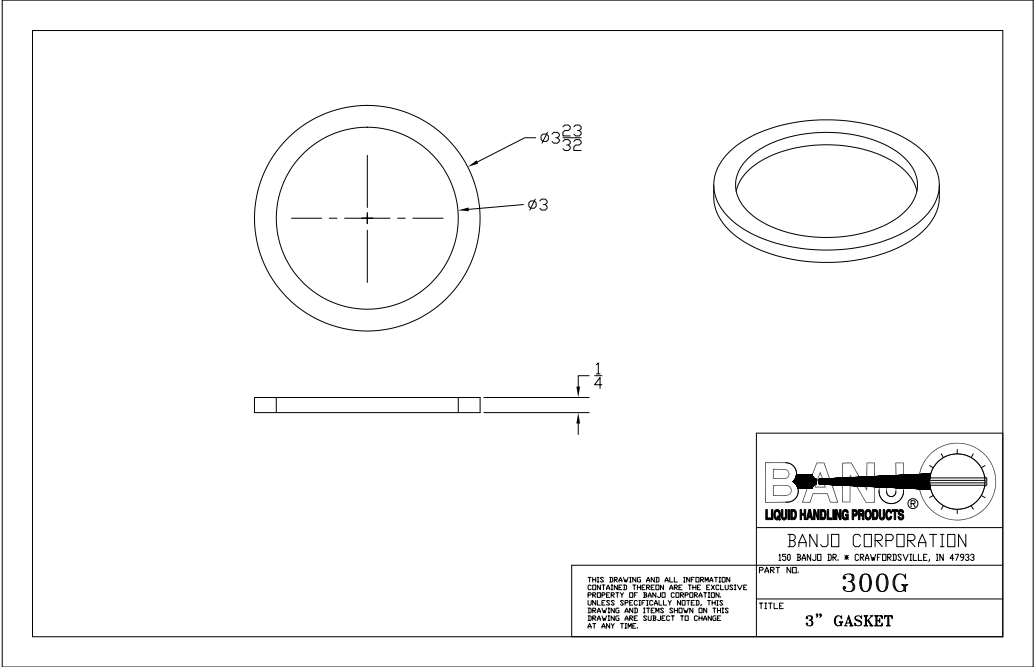

Drawings - 300G (300 Series)

Banjo Rubber EPDM Manifold Gasket - Drawing
