- Manufactured using forging method
- Rapid connect and disconnect of fittings
- Push, twist and lock action for rapid connect and disconnect of fittings
- Aluminium alloy material for long durability
- Easy installation
- Made in Germany

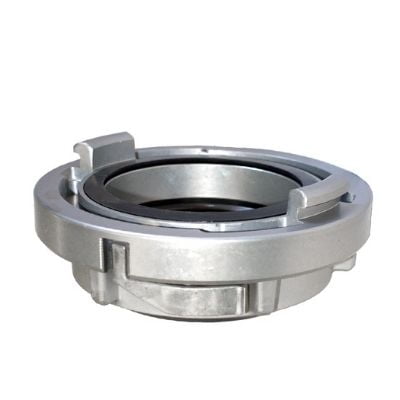

Aluminium Storz Fitting x Female BSP Adaptor
Forged aluminium alloy fitting. Push, twist & lock for quick connect/disconnect. Durable, easy to install & made in Germany for long service life.
Price range: $40.82 through $407.88 Inc. GST
Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

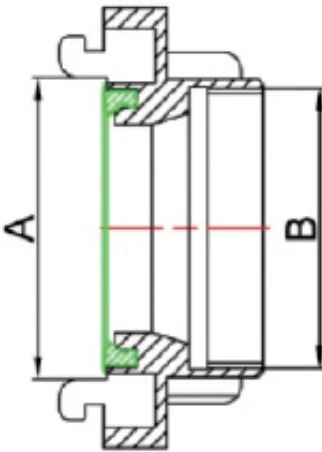

Drawings - Measurements
STORZ ADAPTOR X FEMALE BSP
| DESCRIPTION | LUG DISTANCE / A (mm) | B (Inch) | Weight (kg) |
|---|---|---|---|
| 25mm Storz x ¾″ BSP | 31 | ¾″ | 0.08 |
| 25mm Storz x 1″ BSP | 31 | 1″ | 0.08 |
| 40mm Storz x 1″ BSP | 51 | 1″ | 0.15 |
| 40mm Storz x 1½″ BSP | 51 | 1½″ | 0.15 |
| 50mm Storz x 1½″ BSP | 66 | 1½″ | 0.28 |
| 50mm Storz x 2″ BSP | 66 | 2″ | 0.28 |
| 65mm Storz x 1½″ BSP | 81 | 1½″ | 0.45 |
| 65mm Storz x 2″ BSP | 81 | 2″ | 0.38 |
| 65mm Storz x 2½″ BSP | 81 | 2½″ | 0.38 |
| 65mm Storz x 2½″ NSW FBT (5 Treads Per Inch) | 81 | 2½″ | 0.40 |
| 65mm Storz x 3″ BSP | 81 | 2½″ | 0.41 |
| 80mm Storz x 2″ BSP | 89 | 2″ | 0.43 |
| 80mm Storz x 2½″ BSP | 89 | 2½″ | 0.42 |
| 80mm Storz x 3″ BSP | 89 | 3″ | 0.71 |
| 100mm Storz x 4″ BSP | 115 | 4″ | 0.85 |
| 125mm Storz x 4″ BSP | 148 | 4″ | 1.68 |
| 125mm Storz x 5″ BSP | 148 | 5″ | 1.38 |
| 150mm Storz x 6″ BSP | 160 | 6″ | 1.82 |
