Carbon Steel Firesafe Flanged Ball Valve – ANSI 150
FREEshipping on orders over $100
Buy More,SaveMore
LowPrices Guaranteed
$226.60 – $4,560.60 Inc. GST
Spend $200, get10%off
Spend $300, get15%off
Spend $400, get20%off
Note: Items on sale are exempt from additional discounts.

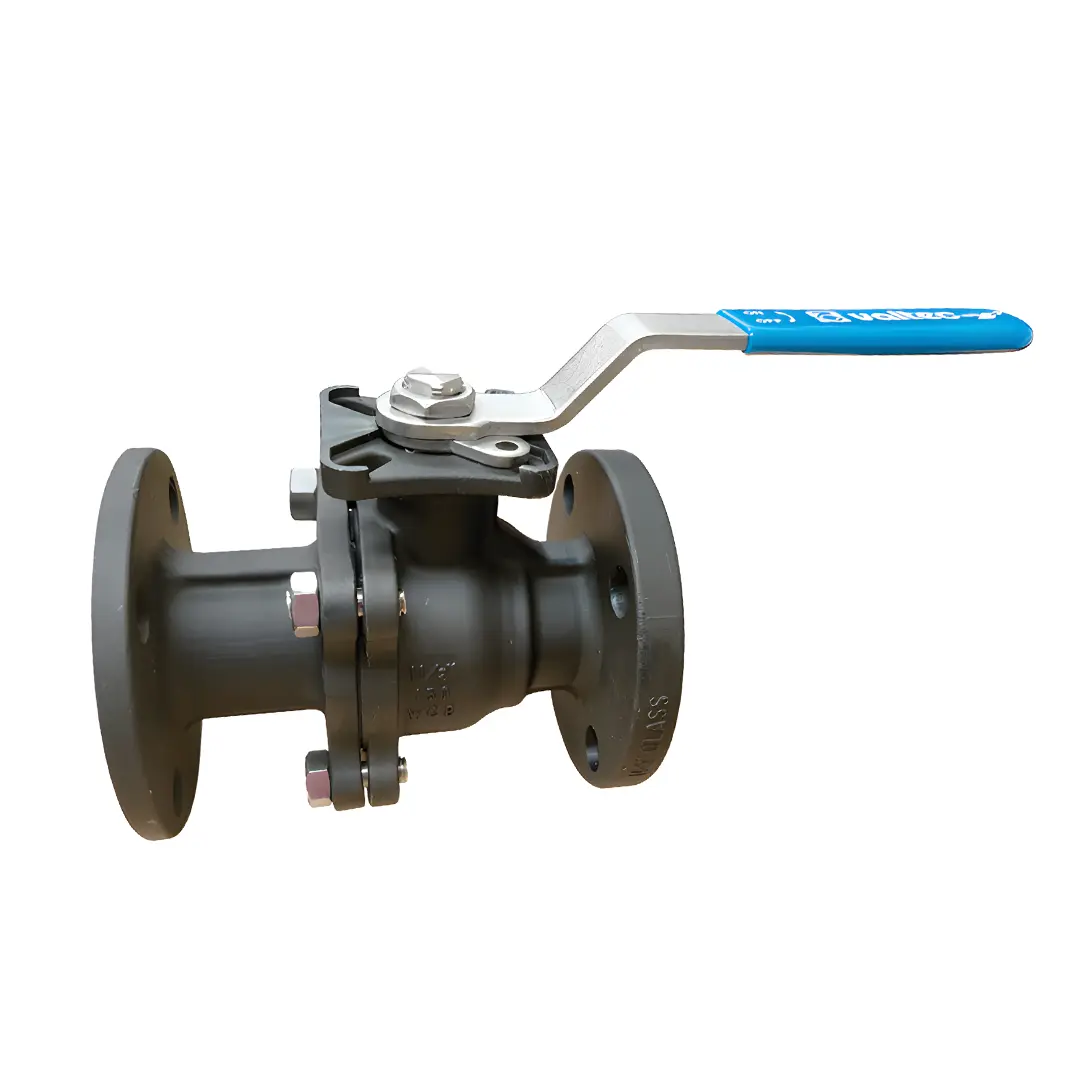

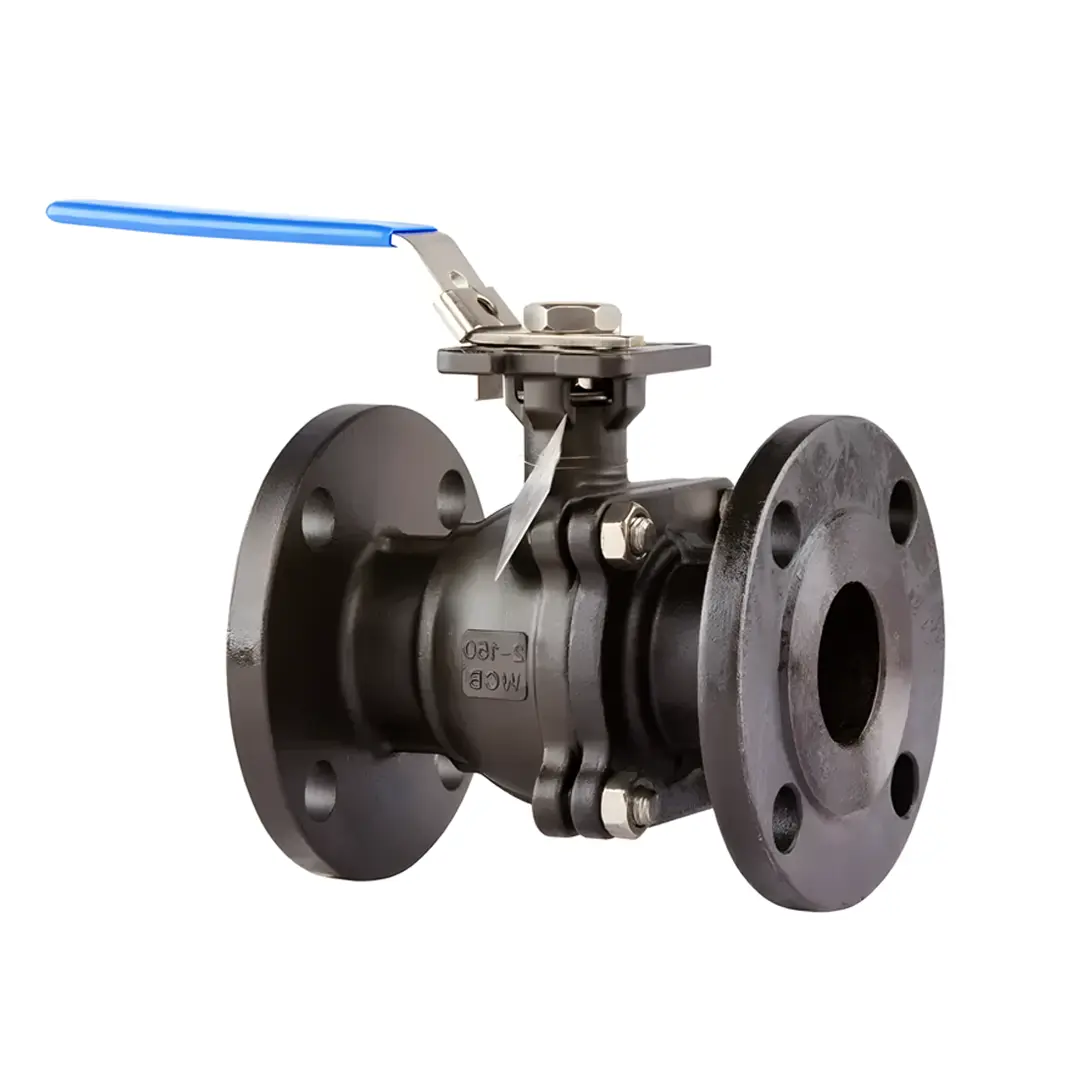

The Carbon Steel Flanged Firesafe Ball Valve ANSI 150 is designed for exceptional performance in demanding industrial applications such as refinery, chemical, petrochemical, and pharmaceutical settings. This valve features a sturdy construction using ASTM A216 WCB carbon steel for the body, providing excellent durability and resistance to high pressures and temperatures up to 200°C. The flanged connection, built to ASME B16.5 standards, ensures a secure and reliable fit for effective flow control.
Equipped with precision-engineered components, including a stainless steel stem and robust graphite seals, this valve is engineered for safety and dependable operation in critical processes. The PTFE and RTFE washers and seats further enhance sealing capabilities, minimizing leaks and optimizing efficiency. Whether managing high-pressure systems or extreme conditions, this firesafe ball valve offers reliable shut-off, long-lasting durability, and ease of maintenance, making it an ideal choice for a range of industrial environments.
BSP Threaded Pipe Fitting Size Chart
| Size | Male Fitting End | Female Fitting End | Threads Per Inch | Actual Barb End | ||
|---|---|---|---|---|---|---|
| Metric Size (mm) | Imperial Size (inch) | Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) | |
| 6 | 1/8" | 3.18 | 10.16 | 10.16 | 28 | 3.18 |
| 7 | 3/16" | 28 | 4 | |||
| 8 | 1/4" | 6.35 | 13.66 | 13.66 | 19 | 6.35 |
| 9 | 5/16" | 19 | 8 | |||
| 10 | 3/8" | 9.53 | 17.17 | 17.17 | 19 | 9.53 |
| 15 | 1/2" | 12.7 | 21.51 | 21.51 | 14 | 12.7 |
| 18 | 5/8" | 14 | 15.88 | |||
| 20 | 3/4" | 19.04 | 27 | 27 | 14 | 19.04 |
| 25 | 1" | 25.4 | 33.93 | 33.93 | 11 | 25.4 |
| 32 | 11/4" | 31.75 | 42.59 | 42.59 | 11 | 31.75 |
| 40 | 11/2" | 38.1 | 48.48 | 48.48 | 11 | 38.1 |
| 50 | 2" | 50.8 | 60.47 | 60.47 | 11 | 50.8 |
| 65 | 21/2" | 63.5 | 76.09 | 76.09 | 11 | 63.5 |
| 80 | 3" | 76.26 | 88.87 | 88.87 | 11 | 76.26 |
| 100 | 4" | 101.07 | 114.14 | 114.14 | 11 | 101.07 |
| 150 | 6" | 152 | 165.12 | 165.12 | 11 | 152 |
Warranty
All products are covered by the full manufacturer’s warranty of 2 years. Should you have an item that is faulty we are happy to replace with a new one. Please contact us with details and/or photos of the fault as well as your contact details so we can discuss the issue and organise a replacement at our cost, or if you prefer we can provide a full refund. In some cases, we may request the item be returned to us depending on the issue.
