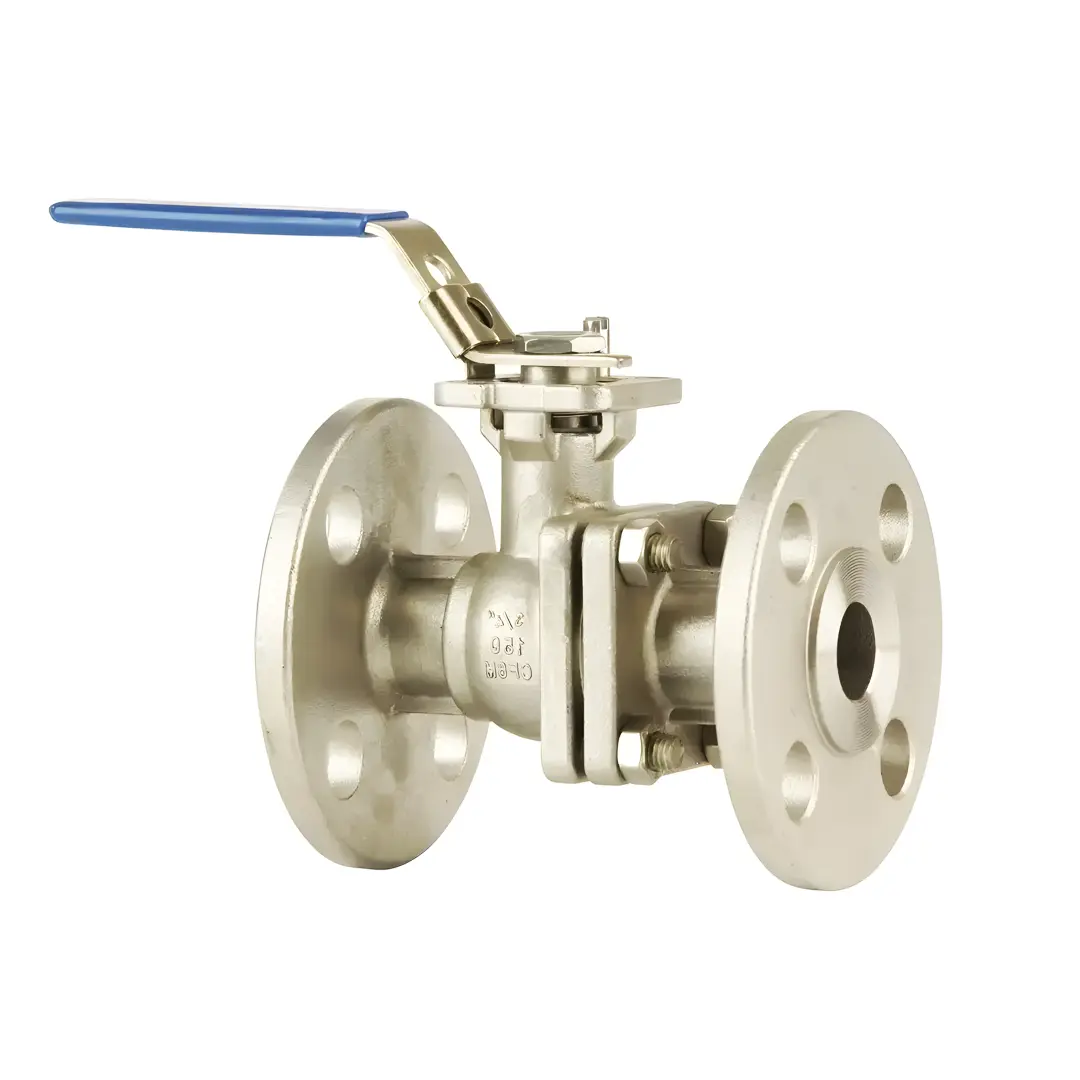

316 Stainless Steel Flanged Ball Valve – ANSI 150
FREEshipping on orders over $100
Buy More,SaveMore
LowPrices Guaranteed
$209.00 – $2,376.00 Inc. GST
Spend $200, get10%off
Spend $300, get15%off
Spend $400, get20%off
Note: Items on sale are exempt from additional discounts.
The 316 Stainless Steel Flanged Ball Valve ANSI 150 is constructed using high-quality materials, including ASTM A351 CF8M stainless steel for the body and ball, ensuring superior corrosion resistance and durability. The stem is also made from SS316, while components like the end cap and gland are SS304, contributing to the overall strength and performance of the valve. This valve is designed for high-pressure environments with a maximum working temperature of 200°C and a cold working pressure rating of 1960 kPa.
Key features include flanged connections adhering to ASME B16.5 and face-to-face dimensions per ASME B16.10 standards, ensuring secure installation and compatibility across a range of applications. Commonly used in industries such as refinery, chemical, petrochemical, pharmaceutical, and power generation, it provides reliable flow control and shut-off capabilities.
Additionally, the valve offers varying torque requirements depending on size, ensuring optimal operational performance and control in diverse settings. Sealing components like the RTFE seat and PTFE thrust washer enhance its sealing capabilities and overall efficiency. This flanged ball valve is engineered for precision, safety, and long-term reliability in demanding industrial applications.
BSP Threaded Pipe Fitting Size Chart
| Size | Male Fitting End | Female Fitting End | Threads Per Inch | Actual Barb End | ||
|---|---|---|---|---|---|---|
| Metric Size (mm) | Imperial Size (inch) | Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) | |
| 6 | 1/8" | 3.18 | 10.16 | 10.16 | 28 | 3.18 |
| 7 | 3/16" | 28 | 4 | |||
| 8 | 1/4" | 6.35 | 13.66 | 13.66 | 19 | 6.35 |
| 9 | 5/16" | 19 | 8 | |||
| 10 | 3/8" | 9.53 | 17.17 | 17.17 | 19 | 9.53 |
| 15 | 1/2" | 12.7 | 21.51 | 21.51 | 14 | 12.7 |
| 18 | 5/8" | 14 | 15.88 | |||
| 20 | 3/4" | 19.04 | 27 | 27 | 14 | 19.04 |
| 25 | 1" | 25.4 | 33.93 | 33.93 | 11 | 25.4 |
| 32 | 11/4" | 31.75 | 42.59 | 42.59 | 11 | 31.75 |
| 40 | 11/2" | 38.1 | 48.48 | 48.48 | 11 | 38.1 |
| 50 | 2" | 50.8 | 60.47 | 60.47 | 11 | 50.8 |
| 65 | 21/2" | 63.5 | 76.09 | 76.09 | 11 | 63.5 |
| 80 | 3" | 76.26 | 88.87 | 88.87 | 11 | 76.26 |
| 100 | 4" | 101.07 | 114.14 | 114.14 | 11 | 101.07 |
| 150 | 6" | 152 | 165.12 | 165.12 | 11 | 152 |
Warranty
All products are covered by the full manufacturer’s warranty of 2 years. Should you have an item that is faulty we are happy to replace with a new one. Please contact us with details and/or photos of the fault as well as your contact details so we can discuss the issue and organise a replacement at our cost, or if you prefer we can provide a full refund. In some cases, we may request the item be returned to us depending on the issue.
